Vizinex  RFID offers a range of passive RFID tags for IT asset tracking, well suited also for many other applications which require small and robust, high performance RFID tags for both metal and non-metal surfaces. All the tags have a footprint of just 36.3 by 10.9 millimeters and come with Alien Technology Higgs-3 chip, but have specific features to fit different requirements.

.

Sentry AST Metal

.

The Sentry AST Metal is optimized to provide excellent performance on metallic surfaces with read range up to 4.5 meters. Ideally suited for IT asset tracking and hospital asset management, it is an excellent solution also for metallic returnable transport items, part tracking in automotive manufacturing,  small tools tagging and other on-metal applications. The Sentry AST Metal is optimized to perform best in the frequency band provides by FCC for the Gen 2 RFID standard.

.

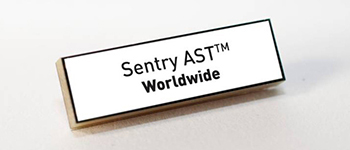

Sentry-AST Worldwide

.

The Sentry AST Worldwide is designed to provide superior on-metal performance in industrial applications and meet the FSTC requirements for IT asset tracking across all the world’s regions in compliance with the Gen 2 RFID standard. It provides read range up to 5 meters when used in the 902-928 MHz frequency band and 2.7 meters in the 860-866 MHz range.

.

.

Sentry-AST Multi-Surface

.

The Sentry AST Multi-Surface is tuned to work on both metallic and non-metallic surfaces eliminating the need to use multiple models of tags and allowing to reduce errors and the time required to match a surface with the proper tag. Providing read range up to 2.5 meters on all surfaces, it is well suited for a wide range of assets and applications. Specifically tuned for use in FCC-regulated areas.

.

Sentry-AST Slim

.

.

The Sentry AST Slim features a low profile of just 2.8 millimeters to meet the needs of IT asset tracking applications with thickness constraints. Optimized for metal, this passive RFID tag offers read range of 3 meters.

.

.

Sentry-AST Ultra Slim

.

.

The  Sentry AST Ultra Slim has an even thinner profile of 2 millimeters providing  1.2 meter read range on metal when used in the 902-928 MHz frequency band.

.

.

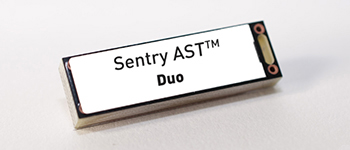

Sentry AST Duo

.

The Sentry AST Duo provides high versatility since it can be attached directly on the item surface or hung by using a cable tie when on-surface mounting is not practical. The surface can be metal or non-metal as well. The read range exceeds 2 meters in the FCC frequency band for the Gen 2 RFID standard.

.

.

Vizinex can deliver all the tags with high quality labels with variable data, custom programming and other services that shorten and make simpler the deployment of the whole RFID system. In addition, tag versions that withstand high temperature, autoclave sterilization and other challenging conditions are available.

These passive RFID tags for IT asset tracking from Vizinex RFID are no longer present in the VeryFields RFID Tags Database, but you can use our RFID tag search engine to find other tags that meet your requirements. Please contact us at info@veryfields.net if you need help with the choice of RFID tags for your projects or complete RFID solutions.
