NEOSID NeoTAG SMD, tiny RFID tag specifically designed for PCB tracking

NEOSID RFID tags for PCB tracking.

NEOSID is offering NeoTAG SMD, an extremely small RFID tag for PCB tracking applications that features soldering pads for being mounted on PCBs like any other component.

.

RFID tag for PCB tracking

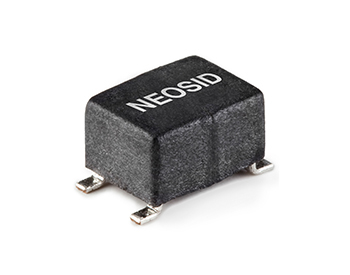

NeoTAG SMD

.

Measuring just 4.7 x 3.7 x 3.1 mm, NeoTAG SMD takes up very limited space on the PCB and is compliant with the J-STD-020D standard for being mounted with assembly machines. This RFID tag for PCB tracking uses the NXP ICODE SLIX chip that is ISO 15693 compliant with 896 bits of user-programmable memory, and provides typical read distance of 40 millimeters in air and on non-metallic objects, and simultaneous reading of up to 50 tags, depending on the reading device and antenna. The temperature values for reading/writing operations range from -20°C to 85°C, while the maximum tolerable ambient temperature is 180°C.

.

.

Please get in touch with NEOSID for additional information and let them know that you heard about their RFID tag for PCB tracking from VeryFields. More details are available also in the VeryFields Database. Contact us at info@veryfields.net if you need help with the choice of RFID tags for your projects.
