VeryFields is proud to start publishing products from HID Global, a leading provider of secure identity solutions and RFID tags. Here below the complete range of UHF RFID tags..

.

.

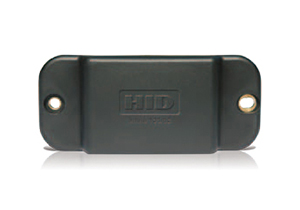

InLine 120/52 UHF Tag

.

Featuring a rugged IP68 construction, the HID Global InLine 120/52 UHF Tags are designed to survive a wide range of chemical agents and mechanical stresses. EPC Class 1 Gen 2 compliant, these passive RFID tags are well suited to any application in logistics such as pallet and container tracking, part manufacturing, repair, overhaul management and many kinds other asset tracking in the automotive, maritime, railway and aerospace industries. The InLine 120/52 UHF Tags are quickly fastened with screws and provide read ranges up to 6 meters on metal and non-metal surfaces as well. Available in FCC or ETSI versions..

.

.

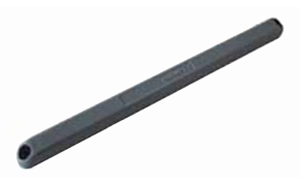

InLine 230/15 UHF Tag

.

The HID Global InLine 230/15 UHF Tags are sturdy RFID tags which provide long read ranges combined with resistance to outdoor environments, aggressive chemical agents and impacts. The InLine 230/15 UHF Tags are optimized to perform well attached to both metal and non-metal surfaces. Typical applications include cargo container tracking, vehicle identification, pallet tracking, waste bin management and a multiplicity of other industrial processes. Available for FCC- or ETSI-regulated areas in compliance with the EPC Class1 Gen 2 RFID standard...

.

.

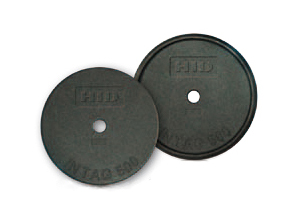

IN Tag 500 UHF and IN Tag 500 UHF (OM)

.

The HID Global IN Tag 500 UHF and the IN Tag 500 UHF (OM) are very rugged, circular form factor, RFID tags designed for part manufacturing process management and many other industrial asset tracking applications. They can be easily fixed with standard and feature a robust IP68 housing which provides excellent protection against liquids, dusts, mechanical stresses, most common chemicals in industrial environments and also prolonged exposure to high temperatures. The IN Tag 500 UHF is optimized for non-metal applications while the IN Tag 500 UHF (OM) is specifically tuned for direct attachment to metal surfaces. Both the products come in ETSI or FCC versions..

.

.

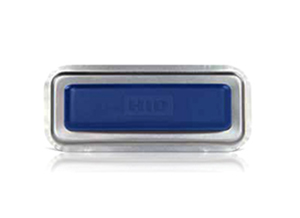

On Metal RTI Transponder

.

The HID Global On Metal RTI Transponders feature a slightly curved form factor to provide better adhesion to beer kegs, gas cylinders, chemical drums and other curved metallic surfaces and returnable transport items. The rugged housing provides effective protection against impacts, aggressive chemicals, high temperature, washing and sterilization processes. These Gen 2  RFID tags are tuned for global use with read ranges up to 7 meters and reliable performance also when tagged containers are filled with liquids. The On Metal RTI Transponders can be attached with glue or welded to metal surfaces for permanent fixing..

.

..

Bin Tag UHF

.

.

The HID Global Bin Tag UHF are conceived to RFID-enable the waste bin management taking advantage of the EPC Class 1 Gen 2 RFID standard in terms of read range. The Bin Tag UHF tags have a robust IP67 construction to survive rough handling and many aggressive chemicals and weather agents. These passive RFID tags can be integrated directly during the waste bin manufacturing process or easily inserted in existing bins and containers which feature a tag nest compliant to the DIN30745 standard. Tuned for use in the FCC frequency band..

.

.

For more information about these RFID tags please visit the VeryFields Database.

HID Global’s portfolio of HF ISO 15693 RFID tags will be soon published, register to VeryFields for updates.
