Convergence Systems Limited (CSL) presented two models of temperature sensing BAP RFID tags engineered to offer standard-compliant RFID solutions that combine excellent reading performance and durability with affordable costs for monitoring the cold chain of perishable goods.
Fully compliant with the ISO 18000-6:2010 / EPC Class 3 Gen 2 standard, the CSL temperature sensing BAP RFID tags can be read by any EPC Class 1 Gen 2 reader by using software provided by Convergence Systems Limited, with read distance over 5 meters in real-world applications, even if placed on products and packaging with high water content and when used at low temperature. The devices offer 352 bits of EPC memory, 3072 bits of user memory and a broad variety of features such as user-configurable sampling intervals and alarm generation capabilities for low battery and low/high temperature.

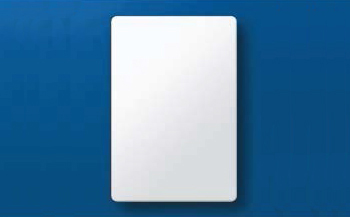

CS8300 Temperature Sensor Tag
.
Thanks to its compact sizes (85 x 54 x 1.8 mm) and low cost, the CS8300 Temperature Sensor Tag is an affordable option not just for carton-level but also for item-level temperature sensing applications. Several companies are using it for monitoring the cold chain of food, pharmaceuticals, living organic materials, floral items, chemicals and other goods that need to be transported and stored at controlled temperature. The CS8300 Temperature Sensor Tag has a waterproof construction (IP68) and can be attached with adhesive or inserted in any non-metallic box.
.
CS8300 Temperature Sensor Tag
.
.

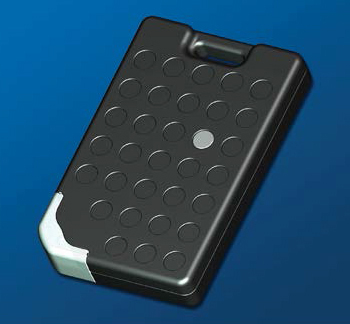

The CS8301 Rugged Temperature Sensor Tag has a robust encasement for reliable use in outdoor and other demanding industrial conditions. This temperature sensing BAP RFID tag is an excellent solution for cold storage rooms, mobile overseas containers and truck trailers, other temperature sensing applications in harsh environments. The CS8301 Rugged Temperature Sensor Tag performs with very low orientation sensitivity and features LED lights for visual notifications. The attachment options include industrial adhesive, tethering string and cable ties.
.
.
.
.
Both the CS8300 and CS8301 come in two regional versions, ETSI and FCC.
Please contact Convergence Systems Limited for additional details, and be sure to let them know that you saw their low cost temperature sensing BAP RFID tags on VeryFields. More info is also available in the VeryFields Database. Contact us at info@veryfields.net if you need help with the choice of RFID tags or complete RFID solutions.
